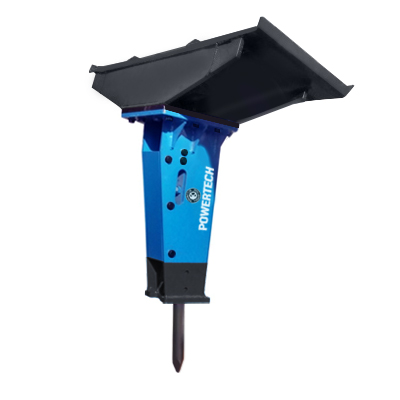

Hydraulic Breaker
POWER TECH
Skid Loader
POWERTECH
- Any model for Skid Steer Loaders can be properly mounted onto as its line-up being composed of.
- The adamant structure of its bracket enables to display the conspicuous performance even at the narrow job site.
- The skid steer loader is applicable to a variety of chisels which are suitable for the working environment.
- The simple and durable structures are designed in a bid to materialize the inexpensive and rapid maintenance.
| MODEL | UNIT | KB20 | KB30 | KB50 | KB50P | KB70 |
|---|---|---|---|---|---|---|
| Operating Weight | ㎏[Lb] | 209[461] | 228[503] | 396[873] | 468[1,031] | 516[1,137] |
| Overall Length | mm[Inch] | 1210[47.6] | 1347[53] | 1580[62.2] | 1580[62.2] | 1660[65.3] |
| Impact Power | J | 300 | 400 | 850 | 850 | 945 |
| ft-lb | 221 | 295 | 626 | 626 | 700 | |
| Tool Diameter | ㎜ | 45 | 53 | 68 | 68 | 75 |
| Inch | 1.8 | 2.1 | 2.7 | 2.7 | 3.0 | |
| Operating Pressure | ㎏/㎠ | 100~120 | 100~120 | 110~130 | 110~130 | 140~160 |
| Psi | 1450~1740 | 1450~1740 | 1595~1885 | 1595~1885 | 2031~2321 | |
| Optimum Oil Flow | LPM | 15~25 | 25~40 | 30~45 | 30~45 | 40~70 |
| GPM | 4.0~6.6 | 6.6~10.6 | 7.9~11.9 | 7.9~11.9 | 10.8~18.4 | |
| Blow Rate | BPM | 700~1200 | 550~1000 | 500~800 | 500~800 | 400~800 |
| Hose Diameter | ㎜ | 12 | 12 | 12 | 12 | 12 |
| Inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |
| Applicable Carrier | Ton | 1.2~3.0 | 2.5~4.5 | 4.0~7.0 | 4.0~7.0 | 5.0~9.0 |
